Display and Configuration

• Rotation, zooming, panning
• Nodes and their boundary conditions
• Sheet profiles, setting of color scale limits
• Mouse position tracking
• Toolbars
• Display options
• Configuration, Hardlock Settings, Project Log Settings (tools forces output)

Zooming operations can be invoked from the Scale toolbar.

To zoom in using mouse, press Ctrl + Shift, hold it and move the mouse with the left button pressed. Release the mouse button to stop zooming in / out. Having a mouse with the scrolling wheel, rotate the wheel to zoom in / out.

Rotation - press the left mouse button, hold it down and drag the mouse. Release the mouse button for scene repaint. (Rotation can be also performed using the cube on the Scale toolbar . Use the same method to rotate the cube. Once the mouse button is released, the scene is repainted in a new position.)

Selecting center of rotation - with Control button pressed, click the left mouse button on sheet or tool. The point clicked becomes the new center of rotation. Use Zoom Fit to move the center of rotation to the center of scene and window.

Panning - press the right mouse button, hold it down and drag the mouse. Release the mouse button for scene repaint.

T-SIM allows to display nodes with different boundary conditions using different colors. Also nodes in contact with different tools can be displayed. The following table shows node types displayed in T-SIM:

For information how to switch visualization of different nodes on and off, see Display options.

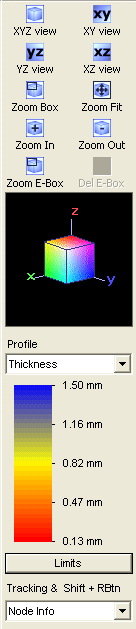

Using Scale toolbar, different profiles can be displayed on sheet:

• No profile - no profile displayed, grid basic color is used (see Display options)
• Thickness profile - thickness profile of the sheet.
• Temperature profile - temperature profile of the sheet
• Stress von Mises - von Mises stresses. The von Mises stress is computed from the principal stresses as follows: Sigma = SQRT({0.5[(P1-P2)^2 + (P2-P3)^2 +(P3-P1)^2 ]} SQRT refers to square root and ^ refers to the power.
• Extension in X - extensions in the direction of the X axis. It is defined as an extension of an infinitesimal abscise placed in the direction of X axis before thermoforming process started.
• Extension in Y - extensions in the direction of the Y axis It is defined as an extension of an infinitesimal abscise placed in the direction of Y-axis before thermoforming process started.
• Planar extension - planar extension profile. Planar extension is an average extension expressed by extensions in principal direction:
  lambda planar = SQRT ( lambda1 * lambda2)
  SQRT refers to square root.
• L1 / L2 - ratio of relative extensions in two principal directions (1 and 2)
  L1/L2 = 1 means deformation is equibiaxial.
  L1/L2 >> 1 means deformation is almost uniaxial.

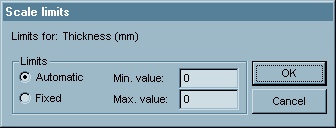

For every displayed profile, its limits can be set using Scale limits dialog.

To set limits for displayed sheet profile, click on Limits button on Scale toolbar. The following dialog appears:

Select Automatic or Fixed.
When Fixed is selected, the scale is kept fixed with limits specified in Min. and Max. value.
When Automatic is selected, T-SIM calculates minimum and maximum on the sheet and uses these values as minimum and maximum for the scale.
Click OK to confirm changes.

Remark: Scale limits can be specified for any profile (thickness, temperature, stress, extensions...).

The automatic mouse position tracking enables to display information about nodes / elements / 3D points in the location where the mouse points.

To switch on the automatic mouse tracking, use T-SIM messages bar - check the small button with the following icon (the icon tool tip is "Item info on / off"):

Now, move the mouse cursor to point on sheet or tool. On the T-SIM messages bar, information about the node / element / 3D point under the mouse cursor is displayed:

The type of information displayed depends on the item under cursor (sheet or tool), and also on the Tracking & Shift + RBtn (Right mouse button) function selected in the Scale toolbar:

Click on the combo box with title "Shift + Right mouse button function" and select one of the possible functions.

• 3D Point Info - display 3D coordinates of the point under the mouse cursor
• Element info - display information about sheet or tool elements
• Node info - display information about sheet or tool nodes (This includes node number, coordinates of the node, thickness at node, temperature at node, node flags [clamped, fixed, no pressure, boundary] - see also Nodes and their boundary conditions.


There are several toolbars and bars in T-SIM enabling to perform various operation, start various tasks, display information boxes, cut windows etc. Every toolbar can be switched on and off using the View menu (this menu is accessible for every document type). For more information, select a toolbar type:

• Standard toolbar - contains standard command + display option shortcuts
• Status bar - standard Windows-type status bar
• Scale toolbar - toolbar for zooming, rotation, displayed sheet profile selection etc.
• T-SIM shortcuts bar - toolbar with shortcuts for creation / opening T-SIM documents
• T-SIM messages bar - bar with T-SIM messages and mouse tracking info
• Post-processing record bar - bar for selection of the active record (post-processing only)
• Post-processing toolbar - toolbar with shortcuts for various task (post-processing only)
• Image manager toolbar - toolbar for image distortion / pre-distortion (image manager is an option)
• Solver bar - bar with command enabling to run / pause / stop solver
• Solver info bar - bar displaying progress of process simulation (Solver only)

This toolbar is displayed at the top of T-SIM window. Its status depends on the active window (namely on the document type displayed in the active window).

The first three buttons enable to create a new document, to open an existing document, and to save the active document:

The next three buttons enable to cut, copy and paste using Windows clipboard:

The button with small printer enables to print the active document:

The following buttons switch on and off displaying of sheet, tool 1 and tool 2:

The next three buttons enable to display the sheet as elements with edges, elements without edges, and just edges:

The following two buttons switch between shaded, wire-frame and shaded + wire-frame display of tool 1 and tool 2:

The last button switches nodes with boundary conditions visualization on and off:

Remark: This button does not allow to display the nodes with boundary conditions when all of them are switched off in Display options. In this case, use Display options to switch on some or all of the nodes with boundary conditions.

Use this toolbar to: 1. Rotate the displayed sheet and / or tool(s). Press the left mouse button on the cube, hold it down and drag the mouse. Release the button for the scene repaint. 2. Display different profiles on the sheet. Click the arrow in the combo box above the Limits button and select the required profile. 3. Set limits for the color scale. See Color scale limits. 4. Set four basic views - X-Y-Z, X-Y, Y-Z and X-Z. Just click on the corresponding button. 5. Use Zoom Box to zoom into a selected area. Click on this button, move the cursor into a required position and press and hold down the left mouse button. Move the cursor to the second corner of the zoom rectangle and release the mouse button. The picture of the selected area appears immediately on the screen. 6. Use Zoom Box to display the whole picture on the screen. 7. Use Zoom In, Zoom Out to zoom in / zoom out. 8. Use Zoom E-Box to perform exclusive zoom. Click on this button, move the cursor into a required position and press and hold down the left mouse button. Move the cursor to the second corner of the zoom rectangle and release the mouse button. The picture of the selected area appears immediately on the screen - everything outside the selected zoom rectangle is hidden (clipped by clipping planes). To remove the clipping planes, click on Del E-Box. 9. Use Tracking & Shift + RBtn box to select the tracking and Shift + Right mouse button function. For more details see mouse position tracking.

This toolbar enables a quick opening / creation of any T-SIM document.

Creates a new grid (sheet) Opens an existing grid (sheet) Creates a new tool Opens an existing tool Creates a new process control Opens an existing process control Creates a new material Opens an existing material Creates a new heat and friction data Opens an existing heat and friction data Creates a new project Opens an existing project Creates a new batch Opens an existing batch Opens an existing solved project for post-processing

This bar displays T-SIM messages stored also in TSLOG.LOG file located in the T-SIM starting directory.
It also displays information about an item under mouse cursor. The items scanned are selected using combo box in the Scale toolbar.

• Check to force the messages in the window to scroll automatically.
• Check to display T-SIM messages.
• Check to enable Item info mouse tracking. The whole control bar can be switched on / off using command View / T-SIM Messages on T-SIM main menu.

Post-processing record bar

When in post-processing, this bar enables to load any record of the solved project.
Use the buttons << / >> to load the previous / next record or directly specify the record number in the edit box on the left of the Load button and click Load.

Use the buttons | < / >| to load the first / the last record.

The message on the right side of the Load button informs about the number of post-processing records. A record number is valid if it is in the range from 1 to N, where N is the number of post-processing records.

Post-processing toolbar

Open the active project for preprocessing Export project files Export simulation results to video Open project report Toggle Cut view Start cooling calculation Critical venting areas Simulate shrinkage Display shrinkage results Select sheet elements Unselect sheet elements Unselect all elements Toggle on / off element picking (selection) Invert selection Refine selected elements Add clamping to selected elements Remove clamping from selected elements Add "no pressure" flag to selected elements Remove "no pressure" flag from selected elements

For more information see Post-processing and Refinement from post-processing.

This toolbar is used for image distortion / pre-distortion (optional feature of T-SIM). For more information see Images.

This toolbar enables to run, pause and stop T-SIM solver, and to open the active project for post-processing:

Start solver Pause running solver Stop (cancel) solver Open project for post-processing

The solver info bar displays information about the progress of the simulation running:

• Ti Time at the current iteration (corresponds with the time used in process control description)
• P rqst Requested pressure in kPa = the pressure which has to be reached at the time Ti
• V infl. Volume of the inflated sheet
• Elem Progress of matrix setup for each element. 722 in this case is the total number of elements, 700 is the currently calculated element.
• Progress bar at the bottom of the window shows overall progress of the project solution.

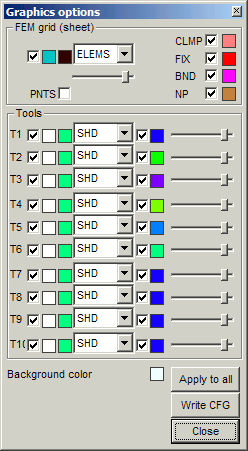

Display options dialog is accessible from:

• Configuration - click Help / Configuration / Display options. The setting specified here are the defaults for any window which will be opened since the display options are modified.
• The active window when it is Solver or Post-processing - click Display / Display Options. In this case, the settings specified are used for the active window only.

Display option dialog:

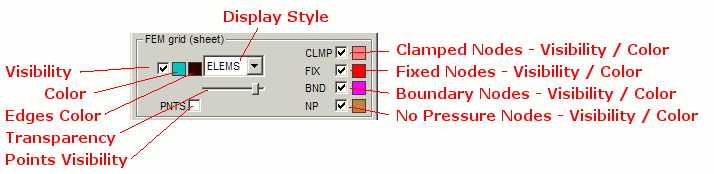

In the section "FEM grid (sheet)", options for FEM grid displaying are available:

• When Visibility is checked, sheet is be displayed.

• In the combobox Display style, three different ways of sheet displaying can be selected:

  Elements + edges - displays sheet as triangles with edges and filled by colors corresponding to selected profile.
  Elements only - displays sheet as a shaded 3D surface.
  Edges only - displays sheet as a wireframe grid

• Color, edges color
  To modify the basic color of grid (sheet) and color of grid edges, click in the colored rectangles. Color selection dialog is displayed enabling to change the color.
• Clamped, fixed, boundary, no pressure nodes options
  Check corresponding check box to make nodes visible. Colors of the nodes can be easily modified - just click on color boxes and change the color in Color selection dialog. Points visibility checkbox enables quick switch of the points (nodes) on and off.
• New in T-SIM Version 4.5:
  • Transparency - sheet can be transparent. The levev of the transparency can be easily adjusted by dragging the transparency slider .

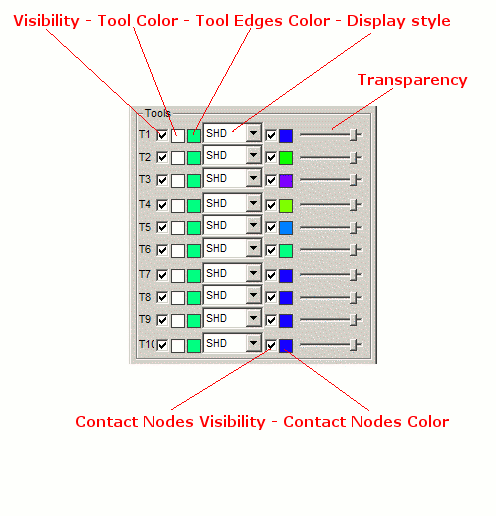

In the section "Tools", options for tools displaying are accessible:

Currently, T-SIM supports at maximum ten independent tools marked as T1 - T10. For all tools, following options can be set:

• When Visibility is checked, the tool is displayed ( is visible).
• In the combobox on the right side of the Display Style checkbox, three different ways of tool displaying can be selected:

  Shaded - displays the tool shaded
  Wireframe - displays the tool as wireframe.
  Shaded + edges - displays the tool shaded with edges of elements

• Tool color, Tool edges color
  To modify the basic color of the tool and color of its edges, click in the colored rectangles. Color selection dialog is displayed enabling to change the color.
• Contact nodes
  Check the check box to make contact nodes visible. Colors of the nodes can be easily modified - just click on color box and change the color in Color selection dialog.

  Remark: Every tool can have its own basic color, color of edges and color of contact points.

Click Apply to All to apply the actual options to all open T-SIM documents/views.

Click Write CFG to store the actual options to T-SIM configuration.

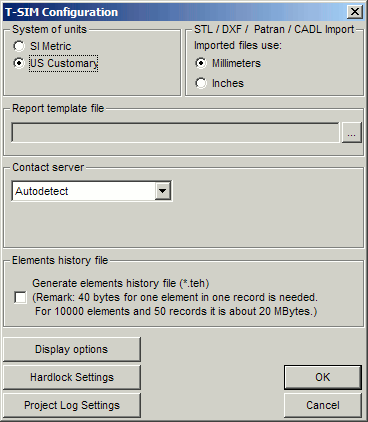

To modify T-SIM configuration, click on Help / Configuration.

System of units:
Select SI Metric to use SI units (mm, °C etc.) while working with T-SIM.
Select US Customary to use US Customary units (inch, °F etc.) while working with T-SIM.

STL / DXF / Patran / CADL Import:
Select Millimeters if coordinates are stored in millimeters in imported STL / DXF / Patran / CDL files.
Select Inches if coordinates are stored in inches in imported STL / DXF / Patran / CDL files. (It depends on CAD package used for STL / DXF / Patran / CDL file creating whether coordinates are in millimeters or inches. T-SIM needs to know this to ensure correct transformations while translating STL / DXF / Patran file into T-SIM internal representation - BCF/PLG file and while loading a trim line.)

Report template file:
Browse for a report template (HTML) file, which should be used for HTML report generation. For more details about HTML report, please see this page.

Contact server:
Use this control to select your license type.
Select 'Local license' when the hardware protection key is connected to the local PC.
Select 'Network license' when the hardware key is somewhere on the network. In such case, specify IP address of the PC with the hardware key.
'Autodetect' option is default. T-SIM will try to locate the key automatically.

Generate Elements History file:
Elements history file (*.teh) is used for detailed analysis of elements history. Check this option if you want to analyze elements history from Post-processing.

Remark: 40 bytes for one element in one record is needed. For 10000 elements and 50 records it is about 20 MBytes.

Display options
This command enables to set up display options.

Hardlock Settings
This command enables activation of various T-SIM features.

Once the configuration is modified , click OK to close the Configuration dialog. Any changes are stored into T-SIM.CFG file.

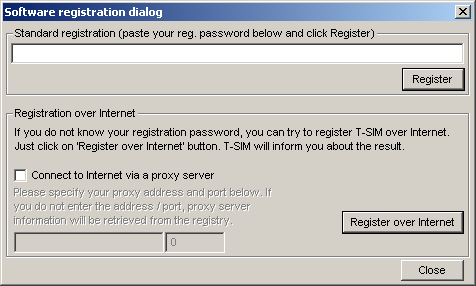

Hardware key dialog, used for version registration, is accessible from Configuration. Click Help / Configuration / Hardlock settings.

Standard registration
If you have obtained a registration password for your version of T-SIM from Accuform or your local representative, enter the activation password here and click OK.

Registration over Internet
If you do not have a registration password for your version of T-SIM, you can try to register T-SIM over Internet. Just click 'Register over Internet' button and T-SIM will inform you about the result within one minute.

If you are using a proxy server to connect to Internet, check 'Connect to Internet via a proxy server', specify proxy IP address (or name) and proxy port. Then try the registration again. If you are not succesfull, contact Accuform for help.

Remark: T-SIM uses HTTP protocol to contact Accuform registration server. T-SIM does not transfer any information from you computer to Accufom registration server except the hardware key serial number, information about your actual version of T-SIM and your IP address.

Project Log Settings (output of tools forces)

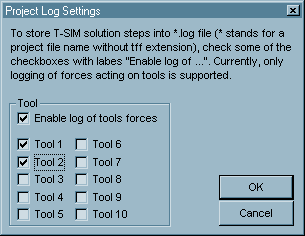

Project log settings dialog enables to switch forces on tools output on and off:

To enable output of forces acting on tools during forming process, check "Enable log of tools forces".
Then check every tool for which you want the forces acting on it to be written into a *.log file. "*" stands for project file name without extension. For example if the project file name is Box.tff, the log file name is Box.log. The log file is created in the same directory as the project solved during the project solution.
